Double-coated Tape 5015E

Nitto double-coated tape 5015E consists of a non-woven tissue carrier, coated with a pressure sensitive acrylic adhesive used for a wide variety of mounting applications.

Download

Datasheet

SDS

Datasheet

NBE_5015E_ENG

SDS

The information contained herein is based on all the documentation, information and data that can be obtained as of the date issued.

However, Nitto Denko Co., provides no warranties or guarantees, express or implied, regarding the accuracy or completeness of the information on contained amount, physical or/and chemical properties, and hazards or/and harm mentioned herein.

As for SDS of products categorized as "Article", Nitto Denko Co., voluntarily creates and releases the SDS for the particular products which frequently receive inquiries.

SDS_NBE_5015E_ENG

Features
Structure
Properties
Applications

Features

High repulsion resistance
Wide range of working temperatures
High adhesion on difficult to adhere materials e.g. low surfaces energy
Recognition by imprint of the carrier
RoHS compliant
UL certified: UL 746A/UL 746C

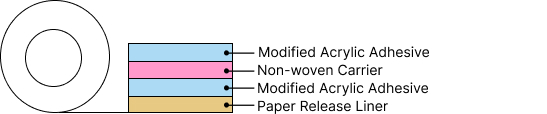

Structure

Modified acrylic adhesive
Non-woven carrier
Modified acrylic adhesive
Paper release liner

Properties

	Typical Value	Test Method
Adhesive type	Modified acrylic adhesive
Tape thickness*	0.160 mm	EN 1942
Release liner	Siliconised white Nitto printed paper (120 g/m²)
Carrier type	Non-woven
Release value	20 cN/50mm	Nitto Test Method
Adhesion to BA steel	1600 cN/20mm	EN 1939
Static shear	1 mm/3h	EN 1943
Transport and storage conditions	Temperature 15 to 30°C
Transport and storage conditions	Relative humidity 40 to 75% RH

* Tape thickness = Total thickness without liner
CAUTION: The above are typical values and should not be used in writing specifications.
Details from the test methods are described on the customer product specification.

Applications

Nitto 5015E is designed to make foams self-adhesive for a wide range of sealing applications. Especially when they are exposed to severe stress, as in automotive applications. The double-coated tape is used to bond graphic overlays, plastic plates and molds, surely if they have a low surface energy.
