Wafer Mounter (Semi-auto type) NEL SYSTEM™

This equipmet is semi-auto type Wafer mounter, applies dicing tape on wafer back side / dicing frame.

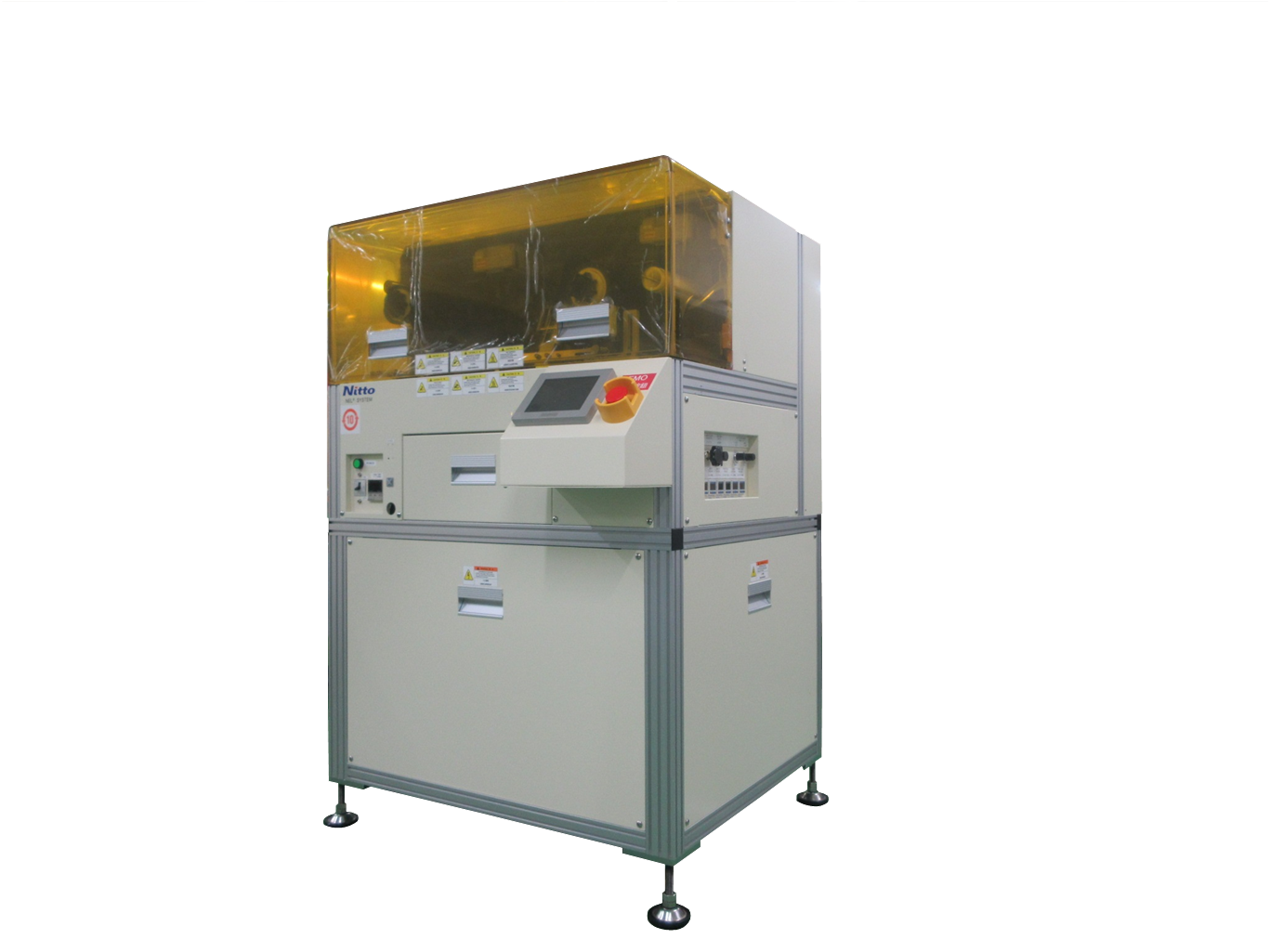

MSA300II

MA3000IIIsemicon_backgrinding_img_icon_ce

Semi-auto Wafer Mounter for 300mm wafer (Roll tape)

Operation flow

Features

  • 300mm wafer available
  • Exclusive use of Roll tape
  • Table heating function:
  • Easy operation by Touch panel
  • Follow to CE mark / SEMI S2/S8

Basic spesifications

  • Applicable frame size：　300mm／200mm
  • Applicable wafer size：　300mm／200mm
  • Applicable wafer thickness：　300mmwafer：　200um or more（Contact table）、250um or more（Non-contact table） 200mmwafer：　200um or more（Contact table）、250um or more（Non-contact table）
  • Throughput：　App.40sec.／wafer
  • *Above spec. values will be influenced by wafer/tape/other conditions, and in several cases, the option function is included.
    In the case the conditions are appropriate, the wafers out of above spec. could be applicable. Please contact us.

MSA300PII

MSA300PIIsemicon_backgrinding_img_icon_ce

Semi-auto Wafer Mounter for 300mm wafer (Pre-cut tape)

Operation flow

Features

  • Semi-auto 300mm Wafer mounter
  • Exclusive use of Pre-cut tape
  • DAF available
  • Table heating function
  • Easy operation by Touch panel & Recipe function
  • Follow to CE mark / SEMI S2/S8

Basic spesifications

  • Applicable frame size：　300mm／200mm
  • Applicable wafer size：　300mm／200mm
  • Applicable wafer thickness：　300mmwafer：　200um or more（Contact table）、250um or more（Non-contact table）　200mmwafer：　200um or more（Contact table）、250um or more（Non-contact table）
  • Throughput：　App.45sec.／wafer
  • *Above spec. values will be influenced by wafer/tape/other conditions, and in several cases, the option function is included.
    In the case the conditions are appropriate, the wafers out of above spec. could be applicable. Please contact us.

MSA840II

MSA840IIsemicon_backgrinding_img_icon_ce

Semi-auto Wafer Mounter for 200mm wafer (Roll tape)

Operation flow

Features

  • Semi-auto type 200mm Wafer mounter
  • Exclusive use of roll tape
  • Table heating function
  • Easy operation by Touch panel
  • Follow to CE mark / SEMI S2/S8

Basic spesifications

  • Applicable frame size：　8 inch／6 inch
  • Applicable wafer size：　8／6／5／4 inch
  • Applicable wafer thickness：　200um or more（Contact table）、250um or more（Non-contact table）
  • Throughput：　App.40sec./wafer
  • *Above spec. values will be influenced by wafer/tape/other conditions, and in several cases, the option function is included.
    In the case the conditions are appropriate, the wafers out of above spec. could be applicable. Please contact us.

MSA840P

MSA840Psemicon_backgrinding_img_icon_ce

Semi-auto Wafer Mounter for 200mm wafer (Pre-cut tape)

Operation flow

Features

  • Semi-auto type 200mm Wafer mounter
  • Exclusive use of Pre-cut tape
  • DAF available
  • Table heating function
  • Easy operation by Touch panel & Recipe function
  • Follow to CE mark / SEMI S2/S8

Basic spesifications

  • Applicable frame size：　8 inch／6 inch
  • Applicable wafer size：　8／6 inch
  • Applicable wafer thickness：　200um or more（Contact table）、250um or more（Non-contact table）
  • Throughput：　App.45sec./wafer
  • *Above spec. values will be influenced by wafer/tape/other conditions, and in several cases, the option function is included.
    In the case the conditions are appropriate, the wafers out of above spec. could be applicable. Please contact us.

M286N/ M265N

M286N/M265N

M286N: Semi-auto Wafer Mounter for 8" wafer
M265N: Semi-auto Wafer Mounter for 6" wafer

Operation flow

Features

  • M286N：　8"& 6" frame available
  • M265N：　6" frame available
  • Adding of Static eliminator (Option)
  • Panel mounting available (Option)

Basic spesifications

  • Applicable frame size：　M286N：8/6 inch、M265N：6 inch
  • Applicable wafer size：　M286N：8/6/5/4 inch、M265N：6/5/4/3 inch
  • Applicable wafer thickness：　200um（Contact table）、　250um（Non-contact table）
  • Throughput：　App.30sec.／wafer
  • *Above spec. values will be influenced by wafer/tape/other conditions, and in several cases, the option function is included.
    In the case the conditions are appropriate, the wafers out of above spec. could be applicable. Please contact us.
