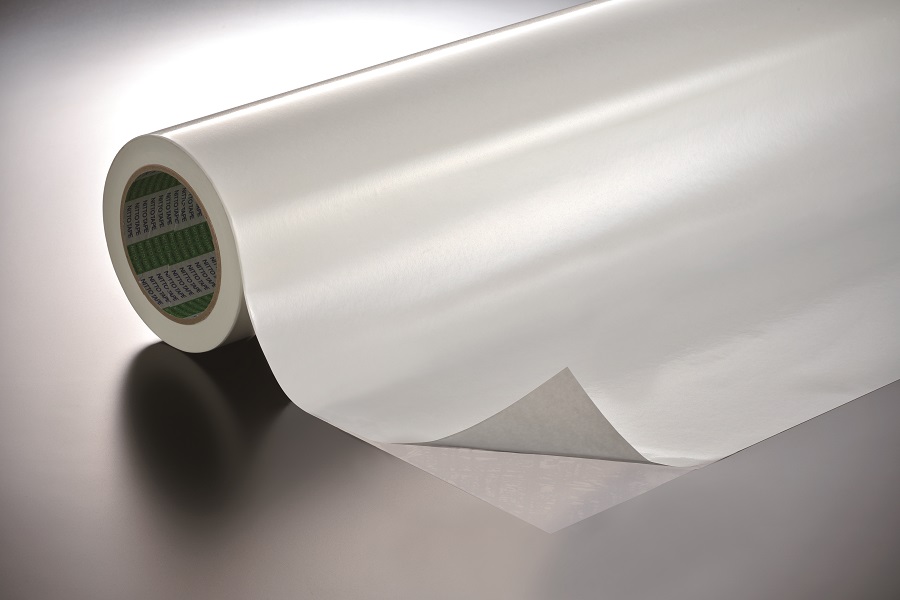

Flame-retardant (UL-94 VTM-0) double coated adhesive tape FR501

FR501 is a flame-retardant, double sided adhesive tape that has been certified to UL-94 VTM-0.

Download

Features

  • Superior adhesion.
  • Excellent flame retardancy. (equivalent to UL-94/VTM-0*application pending).
  • Minimal VOC emission (VOC:Volatile Organic Compounds).
  • Not used halogen-based or antimony-based flame retardants.

Structure

Properties

Thickness [mm] 0.1
180° peeling strength [N/20mm] 17.0
Carrier material Nonwoven fabric

[Remarks]

  • * Measured by peeling in a 180° direction at a speed of 300 mm/min at 23℃ with 0.025 mm PET lining.
  • * The above values are sample observed values, not the guaranteed performance.

Applications

  • Electronic devices such as office equipment or house hold appliances.
  • Interior materials for automobiles, train cars and airplanes.
  • For application of other flame-retardant materials.

Size

Width[mm] Length[M]
1,200 50
