Surface Protection Tape for Extreme Rough and Textured Surfaces SPV 9300 Series

The SPV 9300 series are Surface Protection Tapes suitable to protect rough and textured surfaces during light mechanical processes, storage and transport.

These products consist of a modified PE or special PO film coated with a pressure sensitive acrylic-based adhesive.

Download

Features

  • High initial tack
  • Very high adhesion level
  • Good wetting behavior
  • Good humidity resistance
  • Stretch-resistant film
  • Transparent film for substrate identification and inspection
  • Recyclable film

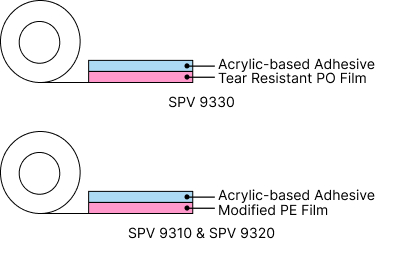

Structure

Properties

SPV 9310 SPV 9320 SPV 9330 Test Method
Film type Modified PE film  Modified PE film PO film n/a
Adhesive type Acrylic-based Acrylic-based Acrylic-based n/a
Total thickness 70µm 70µm 60µm EN 1942
Adhesion on BA steel 320 cN/20mm 430 cN/20mm 290 cN/20mm EN 1939
Tensile strength MD** 25 N/20mm 25 N/20mm 20 N/20mm EN 14410
Elongation MD** 250% 250% 400% EN 14410
Weatherability on BA steel* 25h None None ISO 4892-2
Color Clear transparent Clear transparent Clear transparent n/a

* The weatherability is measured on BA steel. Depending on the substrate the weatherability performance can be different.
** MD = Machine Direction
CAUTION: The above are typical values and should not be used in writing specifications.
Details from the test methods are described on the customer product specification.

Applications

SPV 9300 series protection films are designed to protect low-gloss and textured surfaces from scratches and contamination throughout the supply chain. The transparent film in combination with a pressure-sensitive acrylic adhesive with high adhesion and excellent tack, ensures a reliable performance on rough substrates. SPV 9310 and SPV 9320 use a high-modulus PE film to prevent stretching during lamination, with SPV 9320 offering higher adhesion for more demanding applications. For extremely matte and rough surfaces such as textured plastics, laminates, and coatings like PVDF, PUR, and polyester, SPV 9330 combines a special PO film with a very high-adhesion acrylic adhesive for optimal protection and high repulsion resistance.
