Double-coated Tapes 5790PE series

Nitto 5790PE series are double coated foam tapes, based on a cross linked polyolefine foam, coated with pressure sensitive adhesive, having excellent bonding properties, especially on low energy surfaces.

Available in different thicknesses.

Download

Datasheet

SDS

Datasheet

NBE_5790PEseries_ENG

SDS

The information contained herein is based on all the documentation, information and data that can be obtained as of the date issued.

However, Nitto Denko Co., provides no warranties or guarantees, express or implied, regarding the accuracy or completeness of the information on contained amount, physical or/and chemical properties, and hazards or/and harm mentioned herein.

As for SDS of products categorized as "Article", Nitto Denko Co., voluntarily creates and releases the SDS for the particular products which frequently receive inquiries.

SDS_NBE_5790PE_ENG

Features
Structure
Properties
Applications

Features

Excellent holding properties
Excellent repulsion resistance
Good shock absorbance
Adhesion on a wide range of materials (especially on polyolefine)
Absorb irregularities of the substrate
Good impact resistance
Sound dampening and sealing properties
RoHS compliant

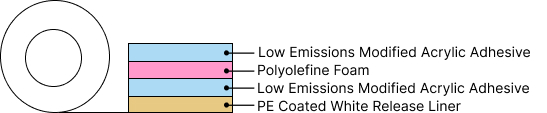

Structure

Modofied acrylic adhesive
Polyolefine foam carrier
Modified acrylic adhesi
Paper release liner

Properties

Adhesive type	Pressure sensitive modified acrylic adhesive
Tape thickness	5790PE8: 0,9mm / 5790PE10: 1,1mm
Release liner	White PE coated paper (125g/m²)
Carrier type	Anthracite crosslinked polyolefine foam
Adhesion value	1700 cN/20mm
Release value	30 cN/50mm
Static shear	1,0 mm/3h

Applications

Nitto 5790PE series are designed for bonding metal sheets, nameplates, emblems, glass parts and a wide range of plastics to several substrates.
