The softness of the foam absorbs the irregularities of two rigid substrates.
| 5703LE | 5704LE | 5706LE | 5709LE | 5711LE | ||

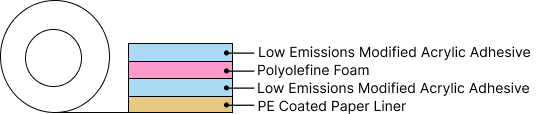

| Adhesive type | Modified acrylic | |||||
| Tape thickness* | 0.25 mm | 0.35 mm | 0.55 mm | 0.85 mm | 1.05 mm | EN 1942 |
| Release liner type | PE-coated paper with green Nitto print (125 g/m²) | |||||
| Carrier type | Polyolefin foam anthracite | |||||
| Release value (cN/50mm) | 40 | 40 | 40 | 50 | 50 | Nitto test method |
| Adhesion to BA steel (cN/20mm) | 1400 | 1600 | 1600 | 1600 | 1700 | EN 1939 |
| Static shear | 1 mm/3h | 1 mm/3h | 1 mm/3h | 1 mm/3h | 1 mm/3h | EN 1943 |
| Transport and storage conditions | Temperature 15 to 30 °C | |||||
| Relative humidity 40 to 75% RH | ||||||
*Tape thickness = Total thickness without liner
CAUTION: The above are typical values and should not be used in writing specifications.
Details from the test methods are described on the customer product specification.
