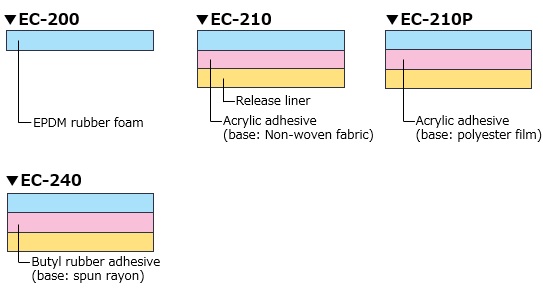

EC-200 Series products are foam sealing material consisting of EPDM rubber foam with semi-closed cell structure. Various types with adhesive layers are available, all of which take advantage of their flexible foam properties. The products can be used for waterproofing, air sealing, soundproofing, or thermal insulation according to the compression ratio. UL-94HBF Flame Retardancy Standard certified.
 |
| Thickness[mm] | Width[mm] | Length[m] |
| 3～20 (Adhesive type is available up to 25mm) | 1,000 | 2 |
| Product No. | Specific gravity | Tensile strength
[N/cm2] | Elongation[%] | Compressive hardness[N/cm2] | |
| 25% | 50% | ||||
| EC-200 Series | 0.085 | 6.0 | 280 | 0.17 | 0.33 |
[Remarks]
