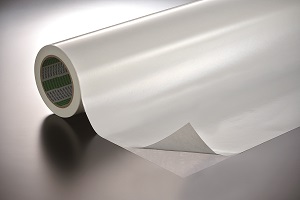

Double Sided Tape with Superior Thermal Conductive Property and Adhesion TR Series

TR series use a thermal conductive adhesive, providing remarkable conductivity.

Superior thermal conductivity by a low value of thermal resistance.

Download

Brochure

Datasheet

SDS

Brochure

Double_Sided_Tape_en

Datasheet

SDS

The information contained herein is based on all the documentation, information and data that can be obtained as of the date issued.

However, Nitto Denko Co., provides no warranties or guarantees, express or implied, regarding the accuracy or completeness of the information on contained amount, physical or/and chemical properties, and hazards or/and harm mentioned herein.

As for SDS of products categorized as "Article", Nitto Denko Co., voluntarily creates and releases the SDS for the particular products which frequently receive inquiries.

Features
Structures
Properties
Applications

Features

Low thermal resistance and superior thermal conductivity.
Powerful adhesion for remarkable strength and reliability.
Features excellent workability and processability.
TR series (exclude TR-5310EX) features UL-94 V-0 flame retardancy.
(Halogen free) [File No.QMFZ2.E52859]
Does not contain RoHS directive 6 restricted substances.

You can look the video of thermal conductive and flame retardancy property.

Your browser does not support iframes

Structures

Properties

TR-5925F	TR-5320F	TR-5325F	TR-5310EX
Thickness (mm / mil)	0.20/7.87	0.25/9.84	0.10/3.93
Adhesive Strength [N/20mm / oz/in]	11.0/50	11.4/52	9.5/43
Thermal Conductivity ^*1 [W/m·K]	1.0		0.4
Thermal Resistance [cm2·K/W]	3.2	3.5	3.6
Flame Retardance [UL94]	V-0		-
Carrire	PET#12

UL94 V0 flame retardancy acquired (halogen free) [File No.QMFZ2.E52859]

[Remarks]

* Measured by peeling in a 180° direction at a speed of 300 mm/min at 23℃ with 0.025 mm PET lining.
* These values are only examples of observed samples and not a guarantee of performance.
*1 Laser flash method At 23°C
