Double-coated Tape 5791

Nitto 5791 is a double coated foam tape, based on a cross linked polyolefine foam, coated with pressure sensitive adhesive, having excellent bonding properties, especially on low energy surfaces.

Download

Datasheet

SDS

Datasheet

NBE_5791_ENG

SDS

The information contained herein is based on all the documentation, information and data that can be obtained as of the date issued.

However, Nitto Denko Co., provides no warranties or guarantees, express or implied, regarding the accuracy or completeness of the information on contained amount, physical or/and chemical properties, and hazards or/and harm mentioned herein.

As for SDS of products categorized as "Article", Nitto Denko Co., voluntarily creates and releases the SDS for the particular products which frequently receive inquiries.

SDS_NBE_5791_ENG

Features
Structure
Properties
Applications

Features

Excellent holding properties
Excellent repulsion resistance
Good shock absorbance
Adhesion on a wide range of materials (especially on polyolefine)
Absorb irregularities of the substrate
Sound dampening and sealing properties
RoHS compliant

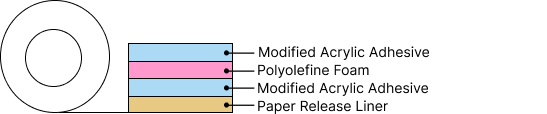

Structure

Acrylic adhesive
Polyolefine foam
Acrylic adhesive
Paper release liner

Properties

Adhesive type	Pressure sensitive modified acrylic adhesive
Tape thickness	1,1 mm
Release liner	Siliconised brown paper
Carrier type	Anthracite crosslinked polyolefine foam
Adhesion value	1100 cN/20mm
Release value	30 cN/50mm
Static shear	1,0 mm/3h

Applications

Nitto 5791 is designed for bonding metal sheets, trim mounting, cable ducts, glass parts and a wide range of plastics to several substrates.
The product is used for interior applications.
